Clamping Unit

The clamping unit copries a double 5-point toggle, operated by hydraulic proportional valve controlled cylinder, on the 4 hard chrome plated tensile steel tie bars and adjustable blocks sliding on hardened guides provide support for the moving platen and relive the tie bars of the mould weight.

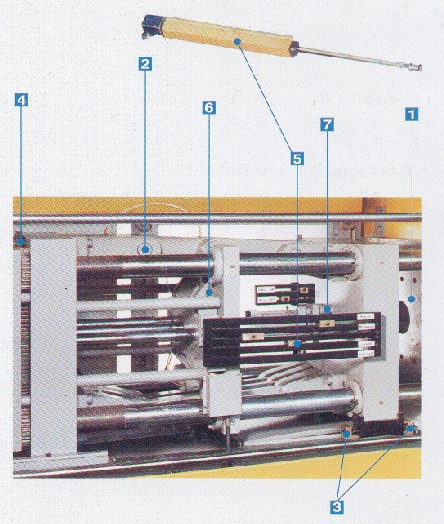

Standard Specification 1.generous space between tie bars and suitable day light. 2.Hardened steel toggle pins. 3.Double adjustable support shoes under moving platen 4.Electrically driven mould height adjustment. 5.Linear transduser for control of clamp unit position. 6.Adjustable automatic lubrication system. 7.Multi-point by hydraulic ejection system with digital control of speed, pressure and counter of ejection(0_9). 8.Adjustable automatic mould safety protection operated by hydraulic cylinder. 9.Double electrical gate safety. 10.Hydraulic safety.
Optional Accessories a.T-slotted platens. b.Photoelectrical cell for safety operation. c.Pneumatic ejector.
